Producer: Tigertronics

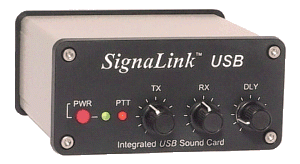

SignaLink™ Model SLUSB With built-in Sound Card

  • Built-in Low-noise Sound Card
  • Simple Installation and Setup
  • Complete Radio Isolation
  • USB Port Powered
  • Works with ALL Radios
  • Uses Mic, Data, or Accy Port
  • Supports All Sound Card Digital and Voice Modes

The SignaLink™ SLUSB can be connected either to the Radio's MIC jack or the Data & Accessory Port if your radio it has one. See here for more details or ask us.

Run the new FT8 mode with WSJT-X and Signalink!

http://www.tigertronics.com/pgmsetup.htm#WSJT-X

Specifications

Power Supply:

USB Port Powered

Audio Freq Response:

100Hz - 10Khz (limited by Low Pass Filter)

Sampling Size/Rate:

16 Bits, All standard rates are supported up to 48Khz

Computer OS:

Windows 98, 98SE, ME, 2000, XP, Vista & Windows 7
MAC OS 9.1 or later
MAC OS X 10.00 or later
LINUX

Computer Hardware:

This depends on the program that you are running (see your program's Help or ReadMe file for details). Most communications programs run fine on a 266Mhz or faster Pentium type processor, but some may require a faster computer.

Radio In/Out Z:

600 Ohm (nom). TX/RX Levels are fully adjustable for compatibility with Hi-Z and Low-Z radio connections.

Auto-PTT™ Delay:

Adjustable "Hang Time", 30 ms to 3 seconds

PTT Circuit:

Relay
Rating - 3AMP (max)

Radio Connector:

TX Audio, RX Audio, PTT, GND - RJ-45
RX Audio/Speaker - 3.5mm Mono

Computer Connector:

USB 1.1/2.0 Compatible
Standard USB "A" type connector

Other Connectors:

Aux. Speaker - 3.5mm Mono

Included

  • Fully Assembled Detachable Radio Cable SLUSB <> Radio
  • USB Cable PC-SLUSB
  • Jumper Wires
  • Allen Wrench
  • Printed Installation Manual

Prices

Prod.Nbr.ProductPrice CHF
(CH)		Price EUR
(rest of EU)
SLUSB4RSLUSB with 4-Pin Round Mic Cable175.-on request.-*
SLUSB8RSLUSB with 8-Pin Round Mic Cable175.-on request.-*
SLUSBRJ11SLUSB with RJ-11 Mic Cable175.-on request.-*
SLUSBRJ45SLUSB with RJ-45 Mic Cable175.-on request.-*
SLUSB5PDSLUSB with 5-pin DIN Acc. Port Cable175.-on request.-*
SLUSB8PDSLUSB with 8-pin DIN Acc. Port Cable175.-on request.-*
SLUSB6PMDSLUSB with 6-pin mini DIN Acc. Port Cable175.-on request.-*
SLUSB13PISLUSB with 13-pin DIN Cable for ICOM Acc. Port175.-on request.-*
SLUSB13PKSLUSB with 13-pin DIN Cable for Kenwood Acc. Port175.-on request.-*
SLUSBK3SLUSB with Cable for ELECRAFT K3175.-on request.-*
SLUSBKX3SLUSB with Cable for ELECRAFT KX3175.-on request.-*
SLUSBNCSLUSB with Un-terminated Radio Cable175.-on request.-*
SLUSBVXYSLUSB with Cable for Yaesu HTs with a threaded 4-conductor TRRS plug175.-on request.-*
SLUSBHTWSLUSB with Cable for Baofeng, Kenwood, and Wouxun HTs175.-on request.-*
SLUSBHTYSLUSB with Cable for Yaesu HTs175.-on request.-*
SLUSBTRSSLUSB with TRS radio Cable for the Xiegu G1M and uBITX175.-on request.-*
SLUSB8PMSLUSB with 8-pin mini-DIN Data/Accy Port Cable for the Xiegu G90, Xiegu X5105 and others175.-on request.-*
SLUSB135SLUSB with Alinco DR-135, DR-235 & DR-435 series radio cables, & the Yaesu FT-2600M. Other radios with a DSUB-9 jack may also work175.-on request.-*
SLUSB847SLUSB with cable for Yaesu FT-847 Data I/O jack (HF only) Also compatible with the Xiegu X1M / X1M PRO QRP radio175.-on request.-*
SLUSBSWLSLUSB with cable for the Short Wave Listener (SWL) or Scanner175.-on request.-*
SLUSB705SLUSB with cable for Icom IC-705 QRP radio175.-on request.-*
SLUSBHTISLUSB with cable for Icom HTs using dual stereo plugs (IC-V86, ID-51A, etc.)175.-on request.-*
Prod.Nbr.ProductPrice CHF
(CH)		Price EUR
(rest of EU)
SLMOD13IPlug & Play Jumper Module 13 pin DIN (ICOM)12.-on request.-*
SLMOD13KPlug & Play Jumper Module 13 pin DIN (Kenwood)12.-on request.-*
SLMOD8PDPlug & Play Jumper Module 8 pin DIN (ICOM)12.-on request.-*
SLMOD6PMPlug & Play Jumper Module 6 pin mini DIN (ALL)12.-on request.-*
SLMOD5PDPlug & Play Jumper Module 5 pin DIN (Yaesu, TEN-TEC)12.-on request.-*
SLMOD8RIPlug & Play Jumper Module 8 pin Mic (ICOM)12.-on request.-*
SLMOD8RYPlug & Play Jumper Module 8 pin Mic (Yaesu)12.-on request.-*
SLMOD8RKPlug & Play Jumper Module 8 pin Mic (Kenwood)12.-on request.-*
SLMODKX3Plug & Play Jumper Module Elecraft KX312.-on request.-*
SLMODK3Plug & Play Jumper Module Elecraft K312.-on request.-*
SLMODHTPlug & Play Jumper Module Yaesu HT12.-on request.-*
SLMOD578Plug & Play Jumper Module AnyTone AT-D578UV12.-on request.-*
SLMOD5X3Plug & Play Jumper Module ABTECH UV50x312.-on request.-*
SLMODR4IPlug & Play Jumper Module Icom and Alinco 8-pin Modular RJ-45 Mic jack connections12.-on request.-*
SLMODR4KPlug & Play Jumper Module Kenwood 8-pin Modular RJ-45 Mic jack connections12.-on request.-*
SLMODR4YPlug & Play Jumper Module Yaesu 8-pin Modular RJ-45 Mic jack connections12.-on request.-*
SLMODR1YPlug & Play Jumper Module Yaesu 6-pin Modular RJ-11/RJ-12 Mic jack connections12.-on request.-*
SLMOD4RIPlug & Play Jumper Module Icom 4-pin round type Mic jack connections12.-on request.-*
SLMOD4RKPlug & Play Jumper Module Kenwood 4-pin round type Mic jack connections12.-on request.-*
SLMOD4RTPlug & Play Jumper Module Ten-Tec 4-pin round type Mic jack connections12.-on request.-*
SLMOD4RYPlug & Play Jumper Module Yaesu 4-pin round type Mic jack connections12.-on request.-*
Prod.Nbr.ProductPrice CHF
(CH)		Price EUR
(rest of EU)
SLCAB4RExtra Radio Cable for 4-Pin Round Mic Connector30.-on request.-*
SLCAB8RExtra Radio Cable for 8-Pin Round Mic Connector30.-on request.-*
SLCABRJ11Extra Radio Cable for RJ-11 Mic Connector30.-on request.-*
SLCABRJ45Extra Radio Cable for RJ-45 Mic Connector16.-on request.-*
SLCAB5PDExtra Radio Cable for 5-pin DIN Acc. Port30.-on request.-*
SLCAB8PDExtra Radio Cable for 8-pin DIN Acc. Port30.-on request.-*
SLCAB6PMDExtra Radio Cable for 6-pin mini DIN Acc. Port30.-on request.-*
SLCAB13IExtra Radio Cable for ICOM 13-pin DIN Acc. Port30.-on request.-*
SLCAB13KExtra Radio Cable for Kenwood 13-pin DIN Acc. Port30.-on request.-*
SLCABK3Extra Radio Cable for ELECRAFT K330.-on request.-*
SLCABKX3Extra Radio Cable for ELECRAFT KX330.-on request.-*
SLCABNCExtra Radio Cable Un-terminated16.-on request.-*
SLCABVXYExtra Radio Cable for Yaesu HTs with a threaded 4-conductor TRRS plug30.-on request.-*
SLCABHTWExtra Radio Cable for Baofeng, Kenwood, and Wouxun HTs30.-on request.-*
SLCABHTYExtra Radio Cable for Yaesu HTs30.-on request.-*
SLCABTRSExtra Radio Cable for the Xiegu G1M and uBITX QRP transceiver30.-on request.-*
SLCAB8PMExtra Radio Cable for use with the Xiegu G90 and Xiegu x5105, and most radios with an 8-pin mini-DIN Data/Accy Port30.-on request.-*
SLCAB135Extra Radio Cable for Alinco DR-135, DR-235 & DR-435 series radios, & the Yaesu FT-2600M. Other radios with a DSUB-9 jack may also work30.-on request.-*
SLCAB847Extra Radio Cable for Yaesu FT-847 Data I/O jack (HF only) Also compatible with the Xiegu X1M / X1M PRO QRP radio30.-on request.-*
SLCABSWLExtra Radio Cable for the Short Wave Listener (SWL) or Scanner30.-on request.-*
SLCAB705Extra Radio Cable for the Icom IC-705 QRP radio30.-on request.-*
SLCABHTIExtra Radio Cable for Icom HTs using dual stereo plugs (IC-V86, ID-51A, etc.)30.-on request.-*

incl. VAT, excl. shipping fees
*excl. 7,7% Swiss und Liechtenstein VAT and shipping fees
FREE shipment for orders over 1000.- CHF (CH only)

Handbook

slusbman.pdf (350.6 KiB)
