New product

Offer of the month

Producer: Expert Electronics




MB1 Prime + ATU - SDR Transceiver HF/6m/VHF

  • PC+TRX in one box
  • 100W HF, 50W VHF
  • Remote control
  • Motherboard - GA-IMB310TN
  • CPU - Intel® Core™ i7-9700
  • RAM - 16 GB DDR4
  • SSD - Samsung 970 EVO 500 GB
  • TX IMD3 up to ~37 dB
  • High Pass Filter (HPF) for VHF (optional)

Characteristic

Review from Pascal VA2PV

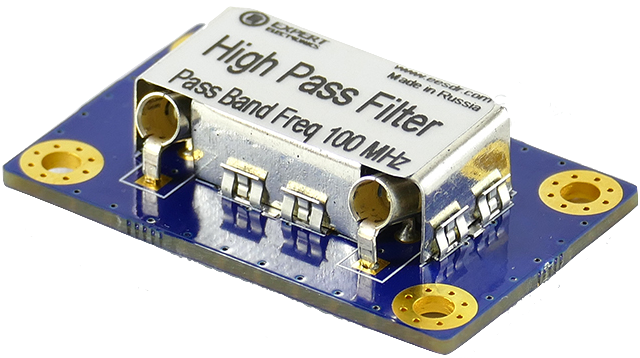

VHF High Pass Filters unit for MB1

Additional High Pass Filter (HPF) for VHF with pass frequency 100 MHz

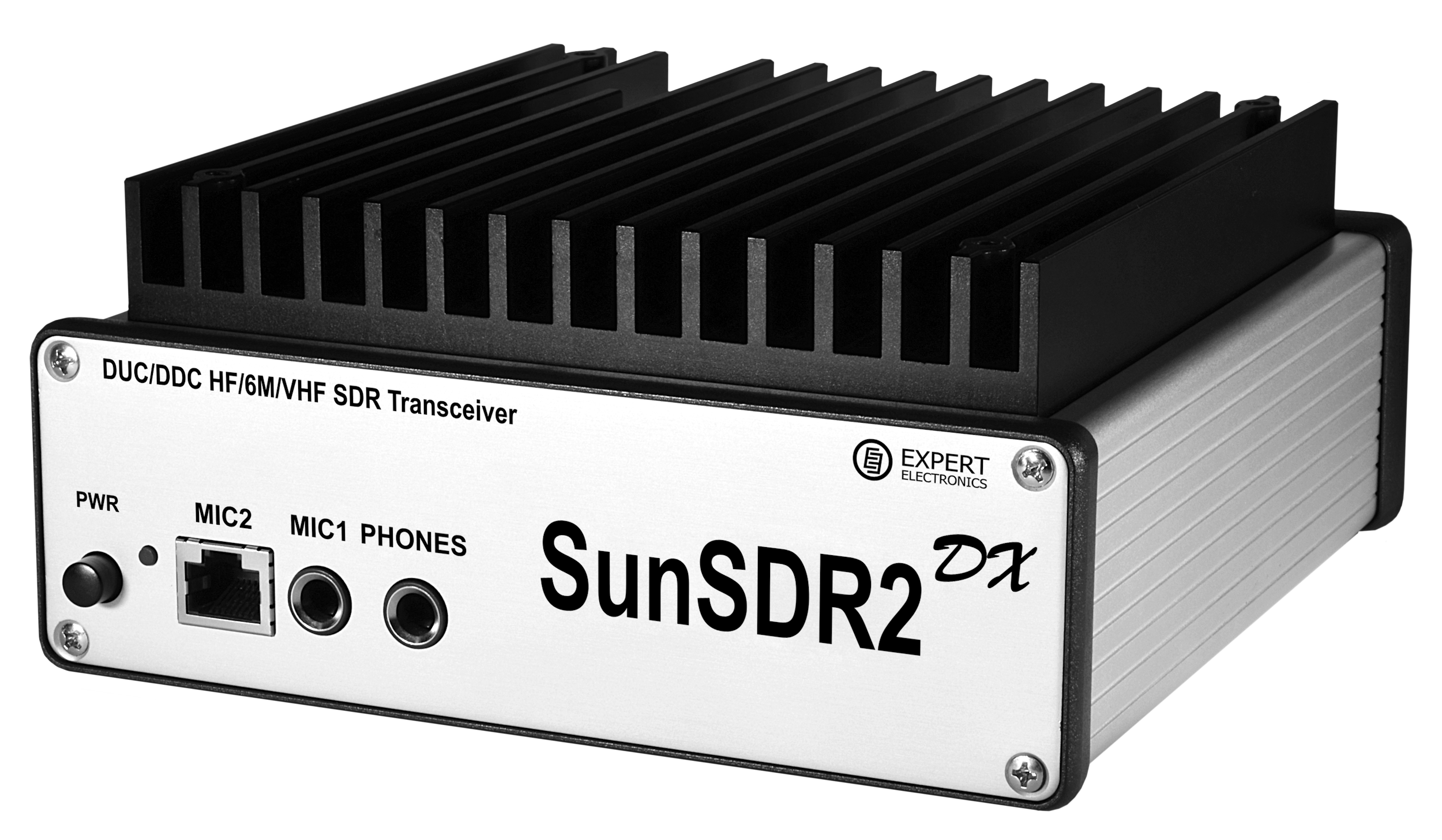

SunSDR2 DX 5.6 Generation - SDR 100W Transceiver HF/6m/VHF

  • 160 MHz, 16-bit ADC
  • 100W HF, 80W 6M, 8W VHF
  • The best for contest
  • HPF for VHF (100 MHz) and LPF for HF (70 MHz)
  • Improved TX IMD3 up to ~37 dB across all HF bands
  • Better linearity of the TX signal
  • Improved structure of 160, 6M TX filters
Brochure
Characteristics



SunSDR2 PRO - SDR Transceiver HF/6m/VHF

  • 160 MHz, 16-bit ADC
  • 20W HF, 8W VHF
  • The best for contest
  • Remote control

Characteristic






ColibriNANO RF ADC 14-bit 122.88Msps Direct Sampling SDR-based receiver

  • Frequency Range: 9 kHz - 55 MHz
  • Bandscope: 62.5 MHz
  • Spectrum: 48 - 3072 kHz
  • Blocking Dynamic Range: 110 dB
  • IMD3 Dynamic range: 95 dB
  • Attenuator: -31  +6dB (0.5dB steps)
  • Input filter: Low-pass 55 MHz

Characteristic

https://www.youtube.com/watch?v=dKEjtrt4Pbw

Three ways how to work with the ColibriNANO

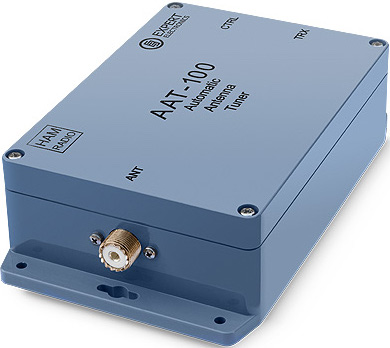

Tuner AAT-100

Automatic Antenna Tuner AAT-100 was designed for SunSDR2 DX transceivers. Allowed SWR level is up to 5 (resistance level in a range from 15 up to 300 Ohm)










E-coder EP SDR Control panel E-coder

SDR control panel is intended to control SDR-transceiver. It allows to control the transceiver by tuning knob, provides controlling the bandwidths, modulation types, filters and many other functions included into SDR - programs

Resolution 256ppr

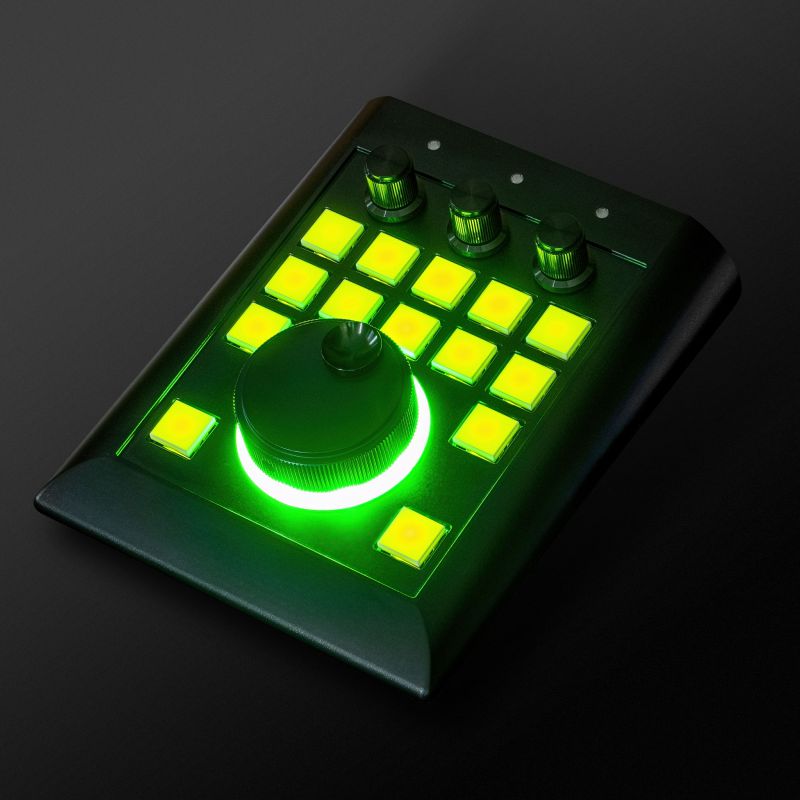

E-coder EP SDR Control panel E-coder2 SE

Control panel of the new generation with high-quality sound-card on board. Allows you to control any of our devices, completely eliminating monitoring delay. It will be especially useful for those who use the ExpertRemote system and who place their transceiver at any distance from the operating position.

Resolution 1024ppr








Hardware control panel E-coder mini (Kit)

Hardware control panel E-Coder Mini is a perfect budget choice and fully functional analog of large E-Coder panel. Note! Setting the buttons and additional N-coders is done self-sufficiently










Foot switch PTT

Footswitch is intended to switch SunSDR transceiver to TX-mode. Cable’s length - 2.0 m, Jack - 6,3mm. Hard flexible cable. Convenient execution












EXTCTRL РТТ cable

Use this cable to connect the РТТ-line of the transceiver to an external power amplifier (PA). With the help of this cable, the transceiver switches an external PA to TX mode.

It can be used with MB1, SunSDR2 DX, SunSDR2 PRO and SunSDR2 QRP

- Control of external power amplifiers

- Transfer of audio signals (made of high-quality mic cable)

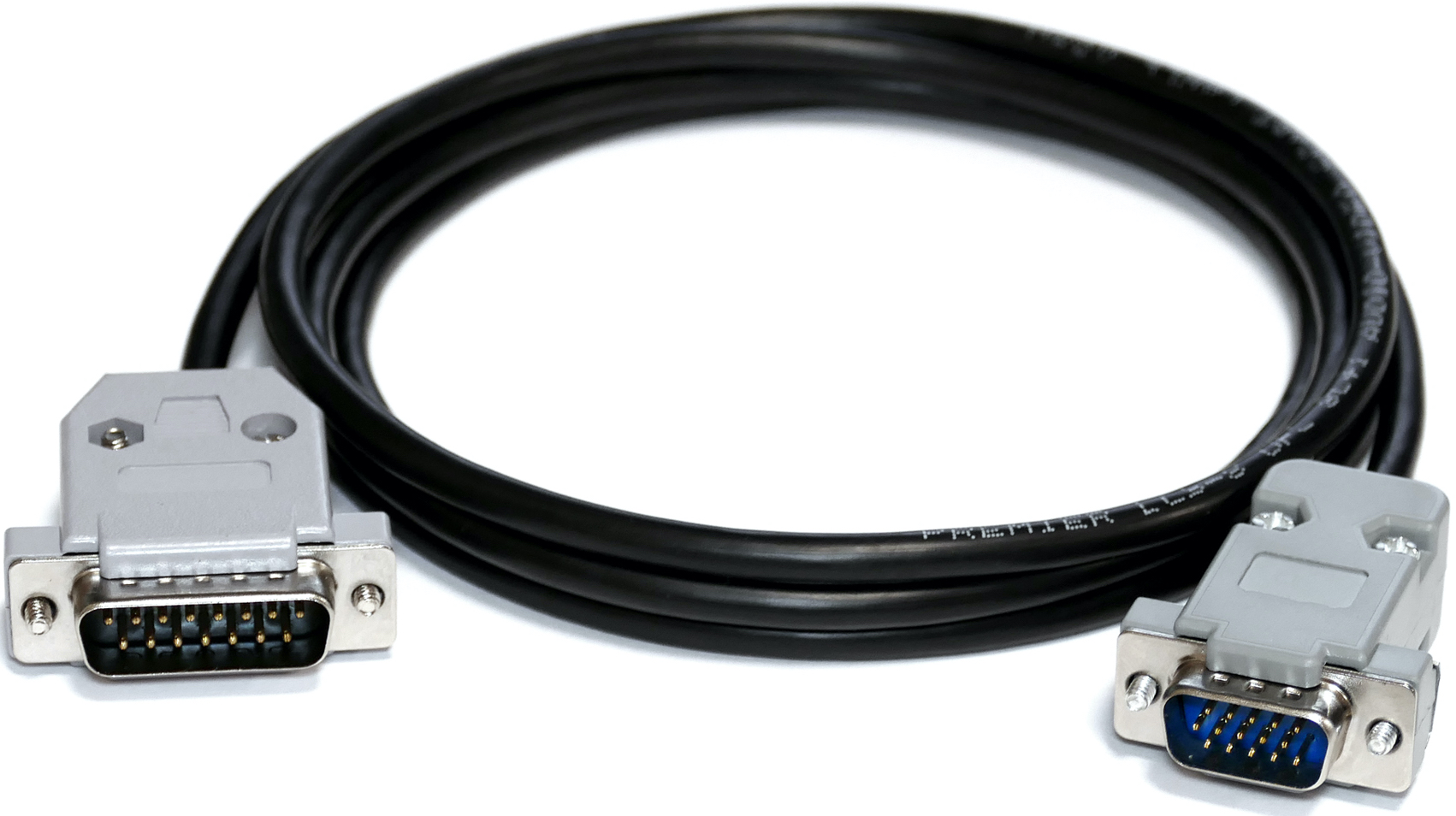

Band-data cable for SPE Expert

Use this cable to connect the ExtCtrl connector of the transceiver to an SPE Expert power amplifier (PA). With the help of this cable, the transceiver can switch bands and turn an external PA to TX mode

It can be used with MB1, SunSDR2 DX, SunSDR2 PRO and SunSDR2 QRP

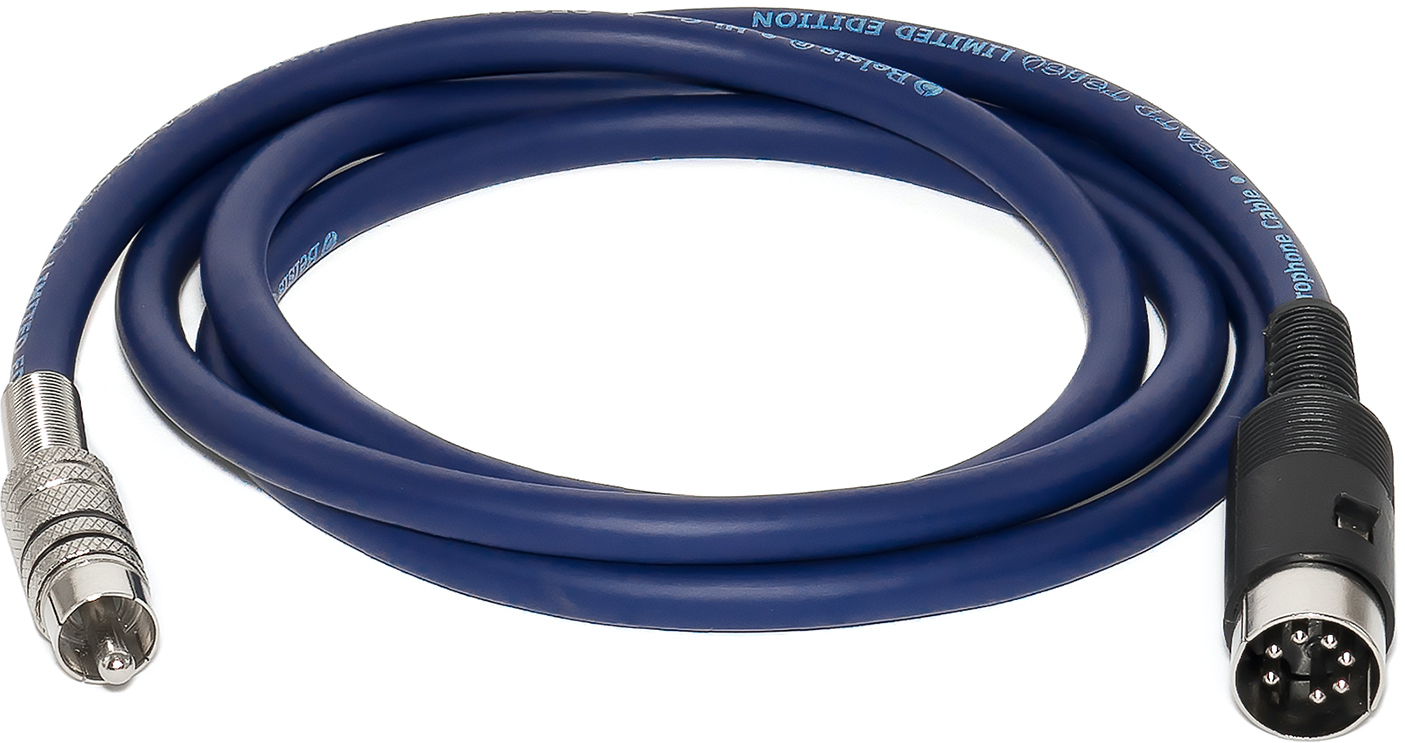

PTT cable for PA HLV-400/550/950/1000

Use this cable to connect the РТТ-line of the MB1 transceivers to an external power amplifier (PA) HLV-400/550/950/1000. With the help of this cable, МВ1 transceiver switches an external PA to TX mode via Remote jack

Control of an external power amplifier HLV-400/550/950/1000

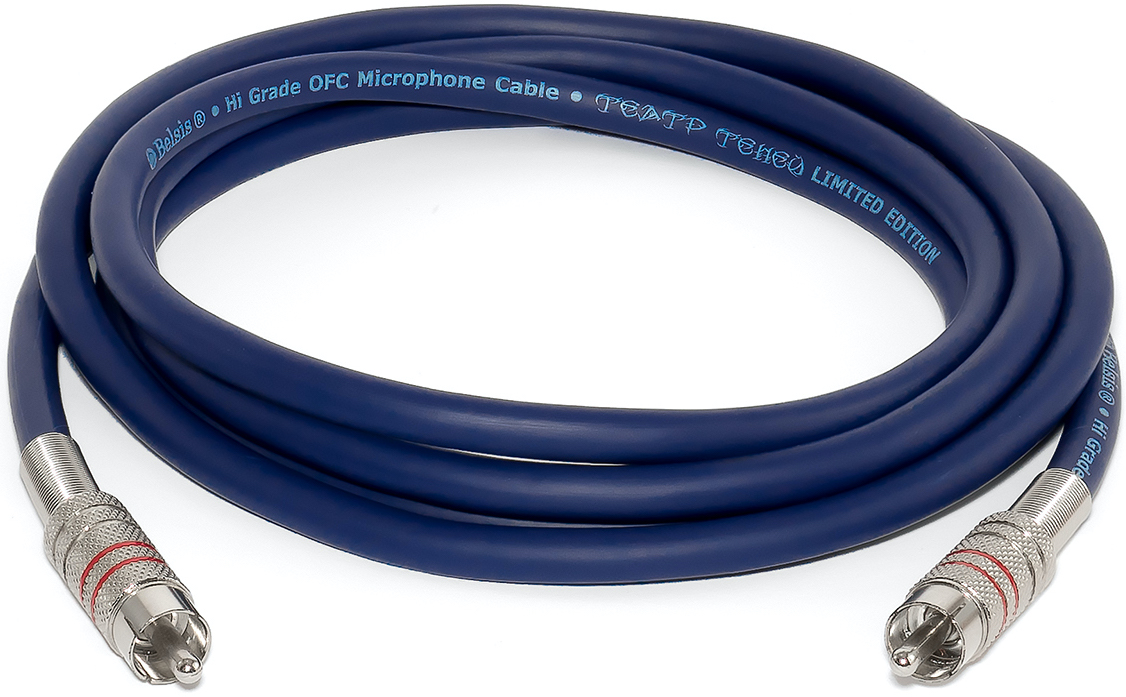

PTT cable for MB1

Use this cable to connect the РТТ-line of the МВ1 transceiver to an external power amplifier (PA). With the help of this cable, МВ1 transceiver switches an external PA to TX mode

- Control of external power amplifiers

- Transfer of audio signals (made of high quality mic cable)

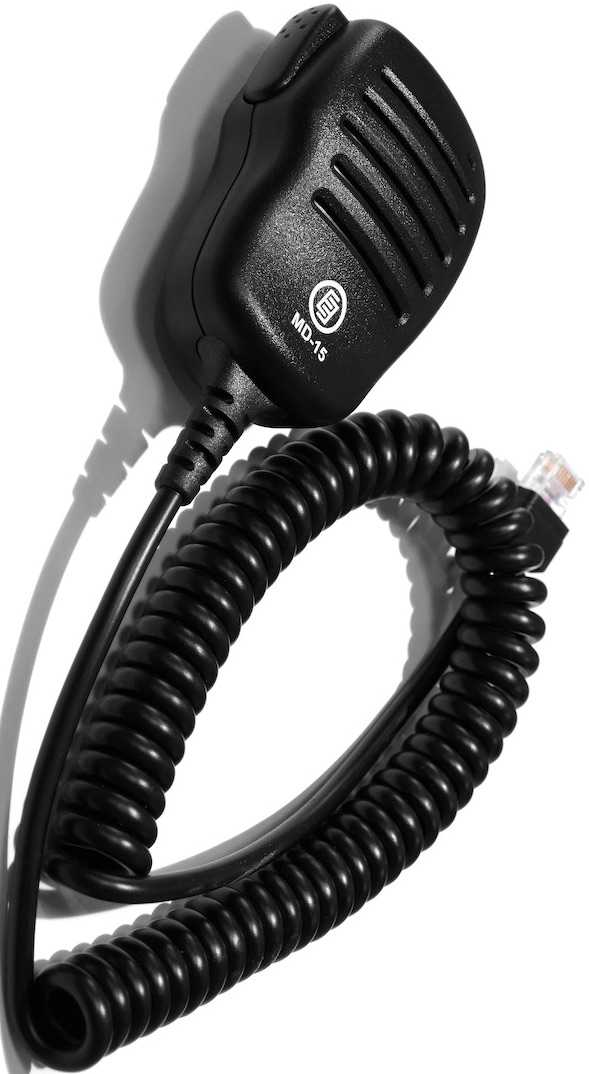

MD-15 Microphone for SunSDR

MD-15 is a high quality hand microphone for use with SunSDR2 DX, SunSDR2 PRO and SunSDR2 QRP

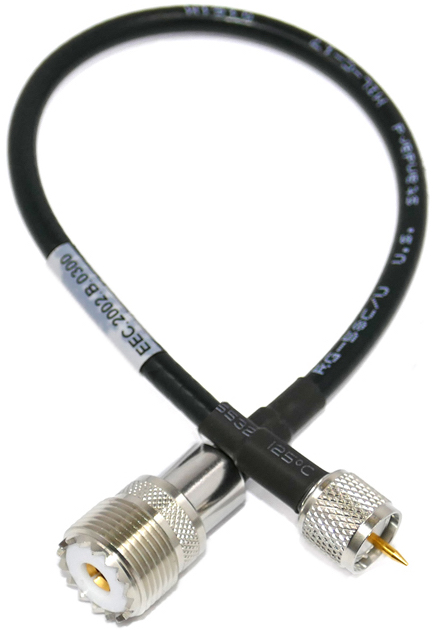

Mini UHF to HF (PL259)

Use this adapter to connect an antenna to SunSDR2 DX, SunSDR2 PRO and SunSDR2 QRP

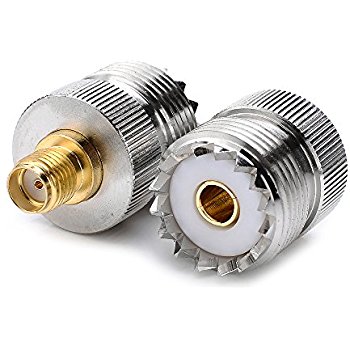

Adapters

  • Adapter mini-UHF-Stecker/PL-Buchse
  • Adapter mini-UHF-Stecker/BNC-Buchse
  • Adapter mini-UHF-Stecker/N-Buchse
  • Adapter SMA-Stecker / N-Buchse
  • Adapter SMA-Stecker / PL-Buchse
  • Adapter SMA-Stecker / BNC-Buchse
  • Adapterkabel RG-316 SMA-Stecker/N-Buchse 30cm
  • Adapterkabel H-155 SMA-Stecker/N-Buchse 30cm
  • Adapterkabel H-155 SMA-Stecker/BNC-Buchse 30cm
  • Adapterkabel RG-316 SMA-Stecker/SMA-Stecker 15cm
  • Adapterkabel RG-316 SMA-Stecker/SMA-Stecker 30cm


Preise

Prod.Nbr.ProductPrice CHF
(CH)
Price EUR
(rest of EU)
MB1_Prime_ATUMB1 Prime - SDR Transceiver HF/6m/VHF mit ATUout of stock.-out of stock.-*
HFPxMB1Additional VHF High Pass Filter (HPF) for MB1out of stock.-out of stock.-*
SunSDR2_DX_Gen5.6SunSDR2 DX 5. Generation - SDR Transceiver HF/6m/VHF 100W - neue Generation !!!2550.-on request.-*
SunSDR2_PROSunSDR2 PRO - SDR Transceiver HF/6m/VHF1790.-on request.-*
ColibriNANOColibriNANO RF ADC 14-bit 122.88Msps Direct Sampling SDR-based receiver299.-on request.-*
AAT-100Automatic Antenna Tuner AAT-100 for SunSDR2 DXout of stock.-out of stock.-*
E-coderE-coder EP SDR Control panel E-coderout of stock.-out of stock.-*
E-coder_2_SEE-coder EP SDR Control panel E-coder2 SE (1024 rpm) with sound card620.-on request.-*
E-coder_miniE-coder EP SDR Control panel E-coder mini (Kit)out of stock.-out of stock.-*
PTT_Foot_switchFoot switch designed for switching your transceiver to TX mode49.-on request.-*
EXTCTRL_PTT_cableEXTCTRL PTT cable can be used for switching an external PA to TX mode. Compatible with MB1/SunSDR2/SunSDR2PRO/SunSDR2QRPout of stock.-out of stock.-*
BD-cable_SPEBand-data cable for SPE Expertout of stock.-out of stock.-*
PTT-cable_HLVPTT cable for PA HLVout of stock.-out of stock.-*
PTT-cable_MB1PTT cable for MB135.-on request.-*
MD-15Microphone for SunSDRout of stock.-out of stock.-*
mini-UHF-S/PL-B_coaxMini UHF to HF (PL259) coaxial cable35.-on request.-*
mini-UHF-S/PL-BAdapter mini-UHF-Stecker/PL-Buchse9.-on request.-*
mini-UHF-S/BNC-BAdapter mini-UHF-Stecker/BNC-Buchse9.-on request.-*
mini-UHF-S/N-BAdapter mini-UHF-Stecker/N-Buchse9.-on request.-*
SDR_SMA-S/N-BAdapter SMA-Stecker / N-Buchse6.-on request.-*
SDR_SMA-S/PL-BAdapter SMA-Stecker / PL-Buchse7.-on request.-*
SDR_SMA-S/BNC-BAdapter SMA-Stecker / BNC-Buchse10.-on request.-*
SDR_ADP_RG316-SMA-S/N-B_30Adapterkabel RG-316 SMA-Stecker/N-Buchse 30cm19.-on request.-*
SDR_ADP_H155-SMA-S/N-B_30Adapterkabel H-155 SMA-Stecker/N-Buchse 30cm21.-on request.-*
SDR_ADP_H155-SMA-S/BNC-B_30Adapterkabel H-155 SMA-Stecker/BNC-Buchse 30cm22.-on request.-*
SDR_ADP_RG316-SMA-S/SMA-S_15Adapterkabel RG-316 SMA-Stecker/SMA-Stecker 15cm18.-on request.-*
SDR_ADP_RG316-SMA-S/SMA-S_30Adapterkabel RG-316 SMA-Stecker/SMA-Stecker 30cm19.-on request.-*

incl. VAT, excl. shipping fees
*excl. 8,1% Swiss und Liechtenstein VAT and shipping fees
FREE shipment for orders over 1000.- CHF (CH only)
